Series · Flexible & Curved LED
CR

Curved Ray

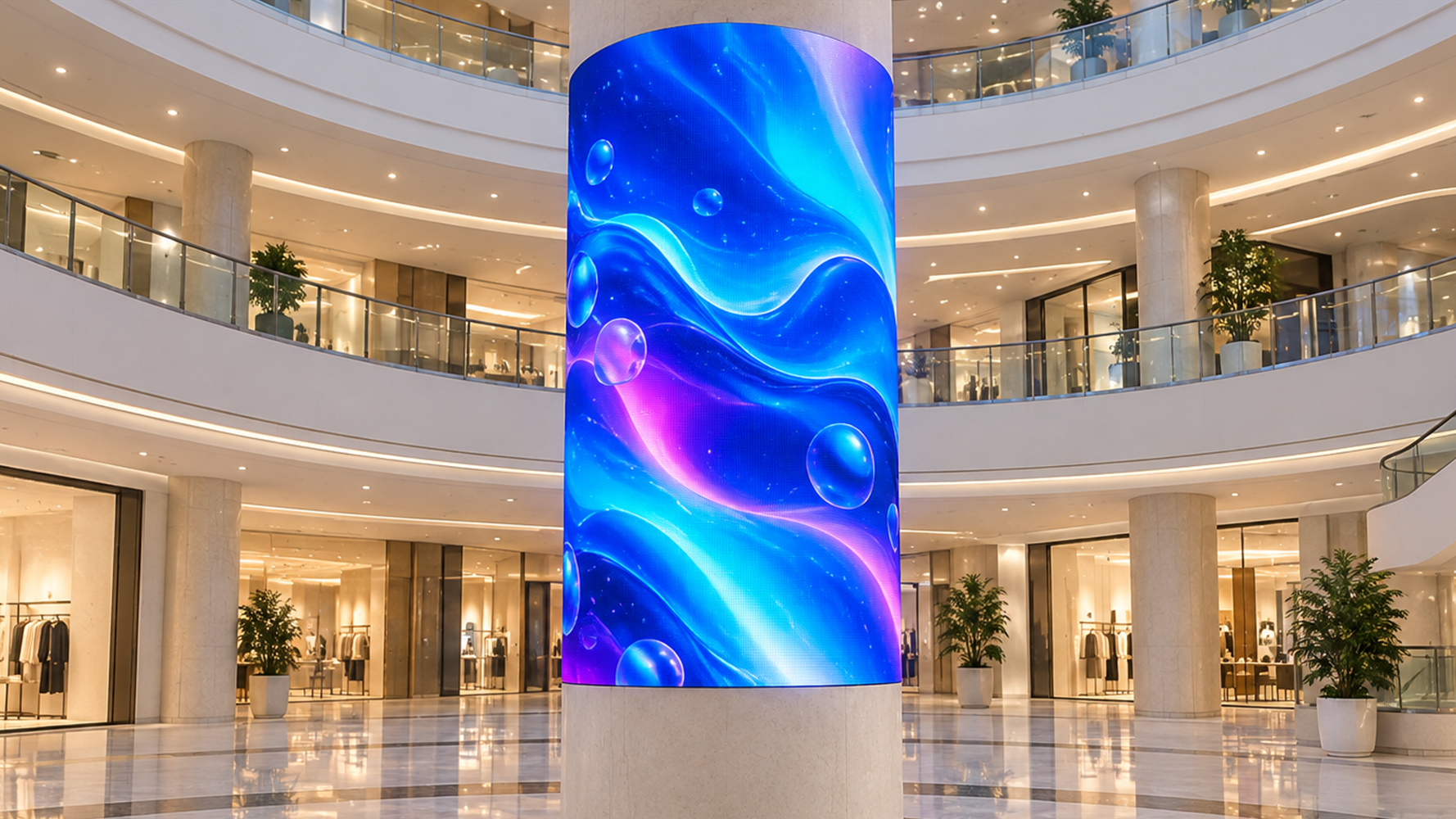

A ray that curves — light that wraps around columns.

Request CR configuration → All series
CR Curved Ray
SEC 01Platforms

A platform, not a single pitch.

Cabinet structure, module and service access stay constant — pixel pitch is selected per project against viewing distance.

CRIIndoor

Flexible steel cabinet

P1.25 / P1.53 / P1.86 / P2.0 / P2.5 / P3.076
CROOutdoor

Outdoor flexible cabinet

P2.5 / P3.076 / P4.0
SEC 02SKU Register

9 models in this series.

Full SKUPlatformEnvPitchSizeRefresh HzBrightnessModule
CRI-1.2CRIIP1.25Flexible steel cabinet3840 Hz550 cd/m²320x160
CRI-1.5CRIIP1.53Flexible steel cabinet3840 Hz550 cd/m²320x160
CRI-1.8CRIIP1.86Flexible steel cabinet3840 Hz550 cd/m²320x160
CRI-2.0CRIIP2.0Flexible steel cabinet3840 Hz550 cd/m²320x160
CRI-2.5CRIIP2.5Flexible steel cabinet3840 Hz550 cd/m²320x160
CRI-3.0CRIIP3.076Flexible steel cabinet3840 Hz550 cd/m²320x160
CRO-2.5CROOP2.5Outdoor flexible cabinet7680 Hz4,500 cd/m²320x160
CRO-3.0CROOP3.076Outdoor flexible cabinet7680 Hz4,500 cd/m²320x160
CRO-4.0CROOP4.0Outdoor flexible cabinet7680 Hz4,500 cd/m²320x160
SEC 03Why CR

A ray that curves — light that wraps around columns.

Flexible module320×160 soft module bends to the architecture
Inner & outer arccolumns, waves, 90° corners
Indoor & outdoorCR320i and CR320o share one design language
Custom radiiengineered per project drawing

Beyond the flat rectangle

Curved Ray modules bend to real radii, letting designers wrap LED around columns, waves and sculptural surfaces without faceted seams.
