Series · Rental LED
TL

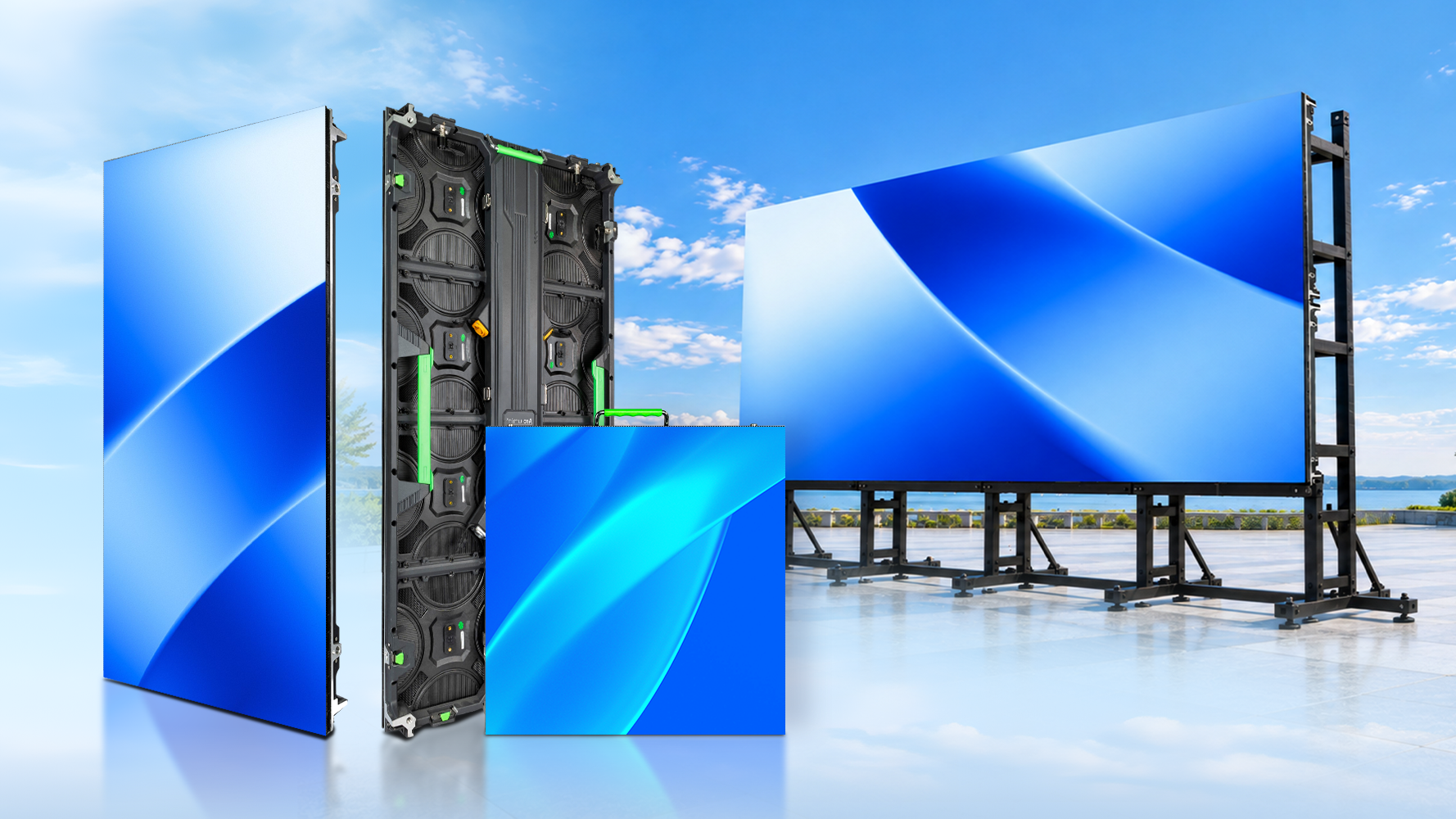

Traveling Light

Travels light, sets up fast — built for the road.

Request TL configuration → All series
TL Traveling Light
SEC 01Platforms

A platform, not a single pitch.

Cabinet structure, module and service access stay constant — pixel pitch is selected per project against viewing distance.

TL1000Indoor / Outdoor

500×1000 mm cabinet

P1.953 / P2.604 / P2.976 / P3.91
TL480Indoor / Outdoor

640×480 mm cabinet

P1.25 / P1.53 / P1.86 / P2.0 / P2.5
TL500Indoor / Outdoor

500×500 mm cabinet

P1.953 / P2.604 / P2.976 / P3.91
TL640Indoor / Outdoor

640×640 mm cabinet

P1.25 / P1.53 / P1.86 / P2.0 / P2.5
TL960Outdoor

960×960 mm cabinet

P2.5 / P4.0 / P5.0
SEC 02SKU Register

29 models in this series.

Full SKUPlatformEnvPitchSizeResolutionRefresh HzBrightnessModule
TL1000-1.9ITL1000IP1.953500×1000 mm cabinet256x5127680 Hz550 cd/m²250x250
TL1000-2.6ITL1000IP2.604500×1000 mm cabinet192x3847680 Hz550 cd/m²250x250
TL1000-2.6OTL1000OP2.604500×1000 mm cabinet192x3847680 Hz4,500 cd/m²250x250
TL1000-2.9ITL1000IP2.976500×1000 mm cabinet168x3367680 Hz550 cd/m²250x250
TL1000-2.9OTL1000OP2.976500×1000 mm cabinet168x3367680 Hz4,500 cd/m²250x250
TL1000-3.9ITL1000IP3.91500×1000 mm cabinet128x2567680 Hz550 cd/m²250x250
TL1000-3.9OTL1000OP3.91500×1000 mm cabinet128x2567680 Hz4,500 cd/m²250x250
TL480-1.2ITL480IP1.25640×480 mm cabinet512x3847680 Hz550 cd/m²320x160
TL480-1.5ITL480IP1.53640×480 mm cabinet416x3127680 Hz550 cd/m²320x160
TL480-1.8ITL480IP1.86640×480 mm cabinet344x2587680 Hz550 cd/m²320x160
TL480-2.0OTL480OP2.0640×480 mm cabinet320x2407680 Hz4,500 cd/m²320x160
TL480-2.5ITL480IP2.5640×480 mm cabinet256x1927680 Hz550 cd/m²320x160
TL480-2.5OTL480OP2.5640×480 mm cabinet256x1927680 Hz4,500 cd/m²320x160
TL500-1.9ITL500IP1.953500×500 mm cabinet256x2567680 Hz550 cd/m²250x250
TL500-2.6ITL500IP2.604500×500 mm cabinet192x1927680 Hz550 cd/m²250x250
TL500-2.6OTL500OP2.604500×500 mm cabinet192x1927680 Hz4,500 cd/m²250x250
TL500-2.9ITL500IP2.976500×500 mm cabinet168x1687680 Hz550 cd/m²250x250
TL500-2.9OTL500OP2.976500×500 mm cabinet168x1687680 Hz4,500 cd/m²250x250
TL500-3.9ITL500IP3.91500×500 mm cabinet128x1287680 Hz550 cd/m²250x250
TL500-3.9OTL500OP3.91500×500 mm cabinet128x1287680 Hz4,500 cd/m²250x250
TL640-1.2ITL640IP1.25640×640 mm cabinet512x5127680 Hz550 cd/m²320x160
TL640-1.5ITL640IP1.53640×640 mm cabinet416x4167680 Hz550 cd/m²320x160
TL640-1.8ITL640IP1.86640×640 mm cabinet344x3447680 Hz550 cd/m²320x160
TL640-2.0OTL640OP2.0640×640 mm cabinet320x3207680 Hz4,500 cd/m²320x160
TL640-2.5ITL640IP2.5640×640 mm cabinet256x2567680 Hz550 cd/m²320x160
TL640-2.5OTL640OP2.5640×640 mm cabinet256x2567680 Hz4,500 cd/m²320x160
TL960-2.5OTL960OP2.5960×960 mm cabinet384x3847680 Hz4,500 cd/m²320x160
TL960-4.0OTL960OP4.0960×960 mm cabinet240x2407680 Hz4,500 cd/m²320x160
TL960-5.0OTL960OP5.0960×960 mm cabinet—7680 Hz4,500 cd/m²320x160
SEC 03Why TL

Travels light, sets up fast — built for the road.

7680 Hzflicker-free for cameras and IMAG
Fast locksone-person cabinet joining, no tools
Flight-case logisticsroad-ready packaging as standard
Redundancy optionsdual power / signal backup per project

Built for the road

Traveling Light cabinets are designed around repeated assembly: quick locks, protected module edges and flight-case friendly geometry.
