How to Choose an Outdoor LED Screen for Shopping Malls

Your installation location, viewing distance and weather conditions decide the right outdoor LED screen. This guide covers pixel pitch, 3D effects, chips, driver IC and waterproofing.

A Guide to Understanding Pitch, Brightness, Materials, and Waterproofing Rating

Before we begin, let us summarize the pain points of outdoor environments: sun and rain. Many customers worry about whether outdoor LED screens are waterproof, can withstand intense sunlight, are lightning-proof and wind-resistant. This guide breaks down the selection process for large-screen displays in shopping malls, based on real-world commercial outdoor conditions.

Choose the Right Pixel Pitch for Your Location

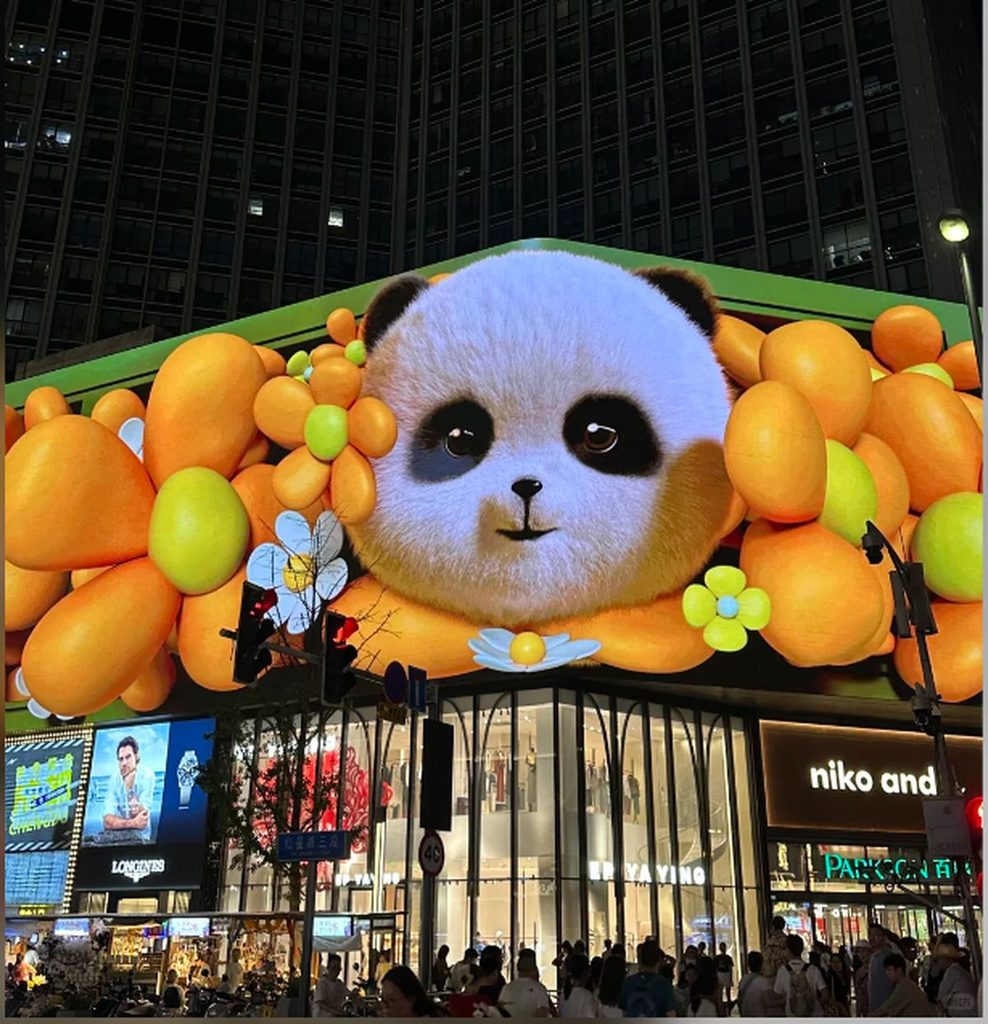

If the screen is installed on the exterior of the shopping mall, mainly targeting people at a distance of more than 10 meters, then P4 to P6 is sufficient to meet the advertising needs.

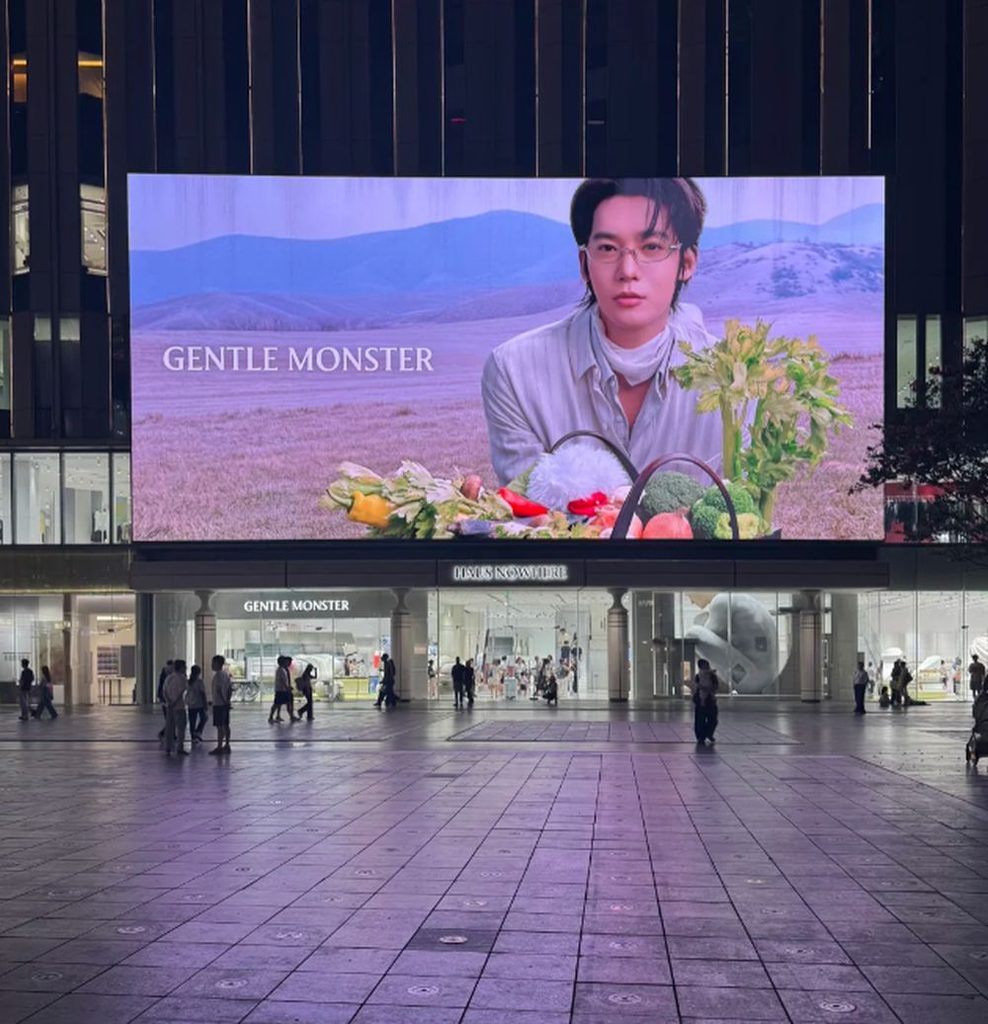

If the screen is installed at the main entrance of the shopping mall or in the plaza area, where the audience is relatively close, it is recommended to choose P3 to P4 for finer image quality.

3D Naked-Eye Large Screens

Compared to traditional advertising, 3D visual effects offer greater appeal. However, good display quality requires consideration of three key factors.

1. Clarity: The screen itself must be sufficiently clear. Naked-eye 3D animations typically contain a large amount of detail. If the pixel pitch is too large, the effect will be compromised.

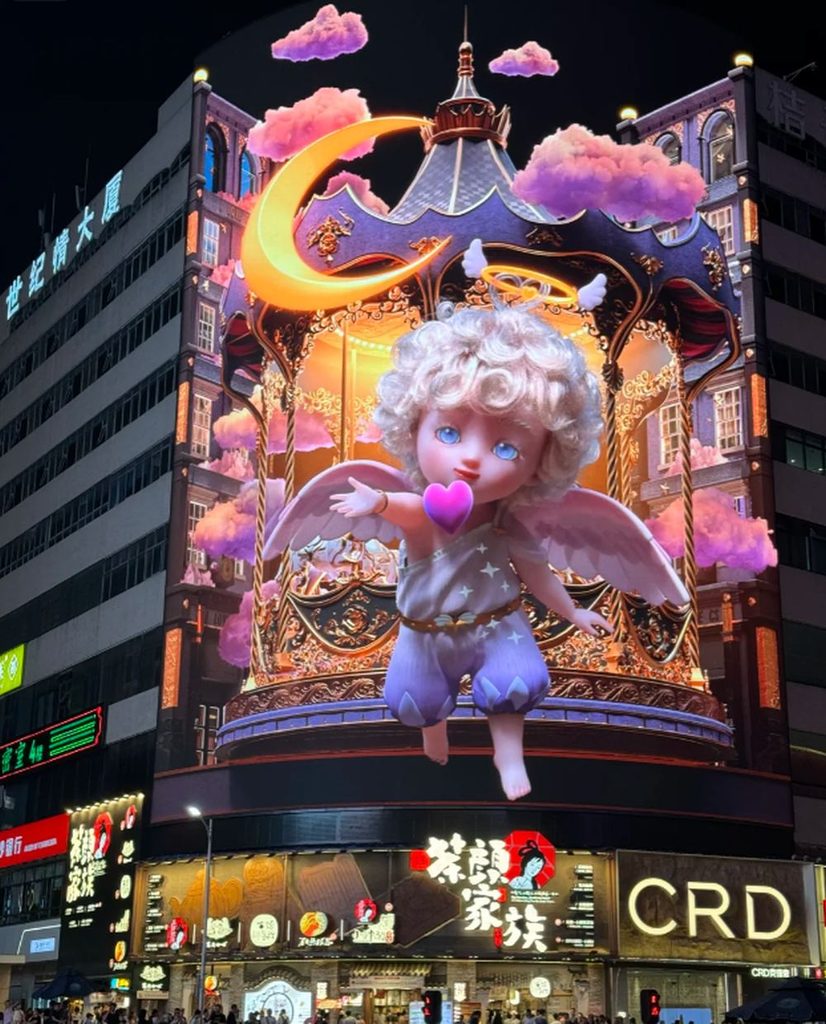

2. Structure: Most common naked-eye 3D screens utilize architectural corners, L-shaped structures or curved designs. If it is just a regular flat screen, even when playing 3D content, the effect will be very ordinary.

3. Content: An excellent naked-eye 3D video often requires specific design based on screen size and optimal viewing angle to truly make the image jump out of the screen.

LED Chips: The Heart of Display Lifespan

The lifespan of an LED screen largely depends on the LED chips. They are like the light-emitting heart of an LED display. If the quality of the LED chips is substandard, even if the image looks good when first installed, problems such as dead LEDs and decreased brightness may appear after one or two years of operation.

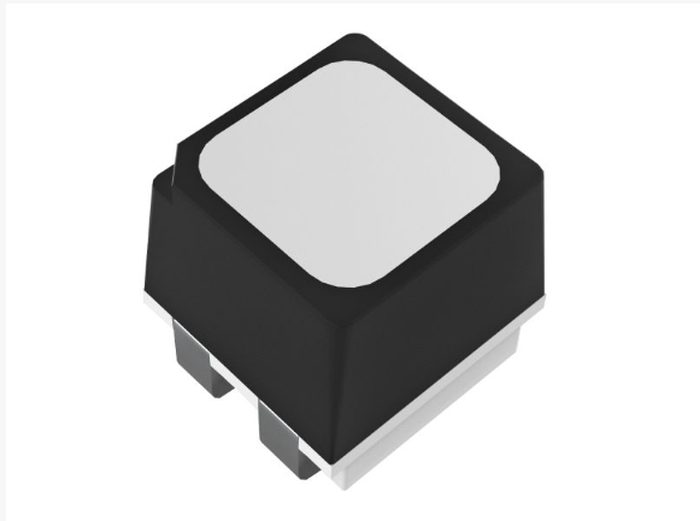

Kinglight 1515N-CB-A2 (Outdoor LED):

– Suitable for P2.5 to P4 LED screens.

– Full screen brightness can reach 6000 nits.

– Common cathode design effectively reduces power consumption.

– Small size for outdoor use, high-definition display, high brightness.

– High-gloss matte finish, superior anti-glare properties, reduces screen reflections.

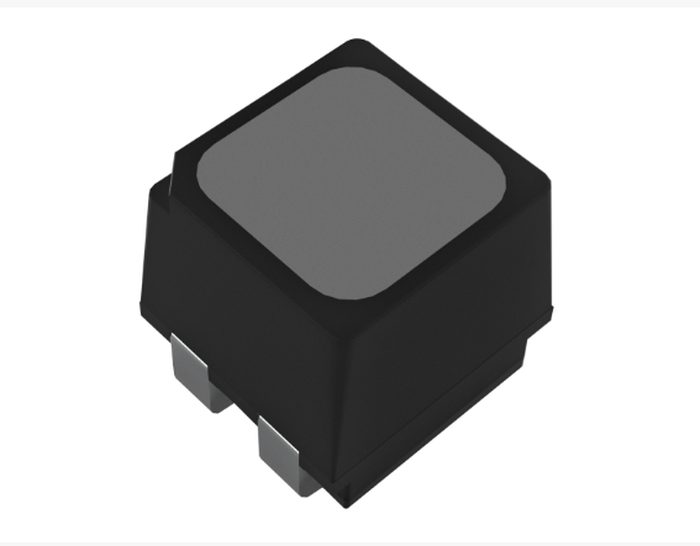

Kinglight 1515-BB-CS2 (Outdoor LED):

– Suitable for outdoor small-pitch P2.5 / P2.6 LED screens.

– More detailed parameters, better display effect and consistency.

– Larger chips paired with brass brackets offer better heat dissipation.

– High contrast ratio, better appearance consistency.

Driver IC: Controlling Every Pixel

If the LED chips are responsible for emitting light, then the IC is responsible for controlling how these LED chips work. An LED display screen contains tens of thousands of LED beads, and the brightness and grayscale changes of each LED bead need to be controlled by an IC.

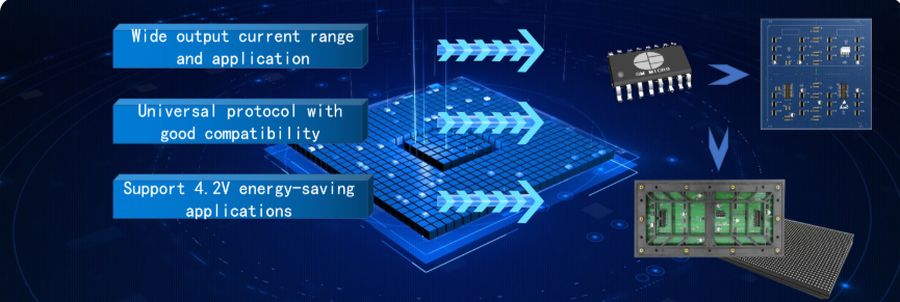

SUNMOON SM16306:

– 16-channel constant current drive, simple wiring.

– Uniform brightness, and colour difference is not easily observed with long-term use.

– Low voltage and low heat generation, saving energy and extending lifespan.

– Comes with built-in shadow removal, high refresh rate with no shooting ripples.

– No fault self-test, not applicable to ultra-high definition small pitch.

Waterproofing and Weather Resistance

For outdoor LED screens, waterproofing is non-negotiable. The Ingress Protection (IP) rating determines how well the screen cabinet and modules resist dust and water. Most outdoor LED displays use an IP65 rating on the front surface, meaning they are fully dust-tight and protected against water jets from any direction. For areas with heavy rainfall or high humidity, IP66 or IP67 ratings offer additional protection.

Cabinet material also matters. Iron cabinets are cost-effective but prone to rust over time in humid outdoor environments. Aluminum cabinets are lighter, more corrosion-resistant and offer better heat dissipation, making them the preferred choice for high-end shopping mall installations. Additionally, the screen should be equipped with a lightning protection module and proper grounding to safeguard against electrical surges during thunderstorms.

Maintenance access is another consideration. Front-maintenance cabinets allow technicians to service modules from the front of the screen, which is essential for wall-mounted installations where rear access is impossible. Rear-maintenance cabinets require space behind the screen for servicing.

Key Takeaways for Your Purchase

Outdoor LED screens in shopping malls not only serve as advertising tools but also enhance the business image and attract customers. From pixel pitch selection to naked-eye 3D effects, and the choice of LED chips and driver chips, every detail affects the final display quality and lifespan. Do not overlook waterproofing rating, cabinet material and lightning protection, as these determine long-term reliability in outdoor conditions.
